Specification
JD Glass product catalogs · Aluminum Entrance Doors
Aluminum Entrance Doors — System Overview

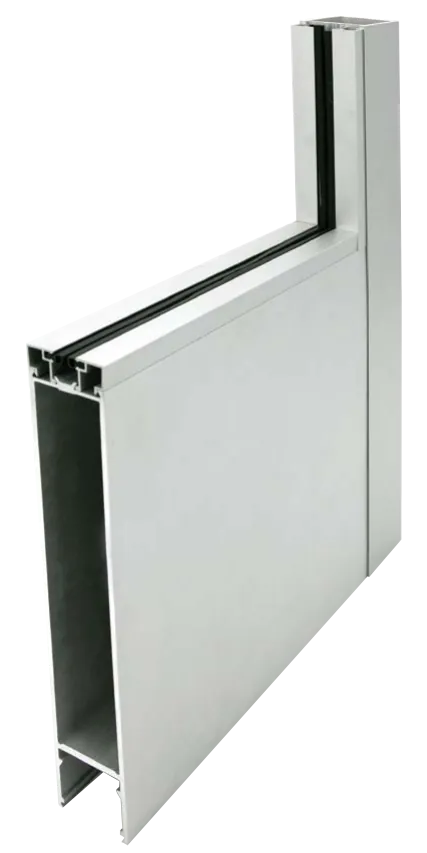

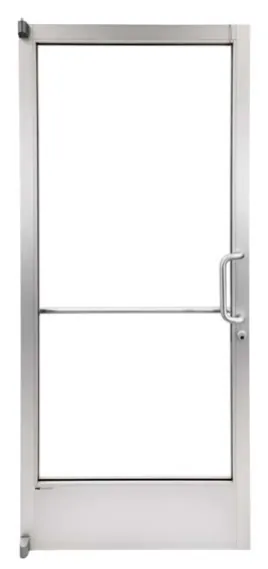

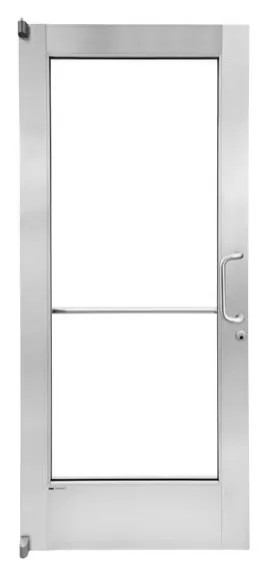

- Complete line of narrow, medium and wide stile entrance systems: door, frame and hardware
- A.D.A. compliant 10" bottom rails available; custom configurations through the FastFab program
- Doors fabricated on the Rapid-Fab machine: program, load, fabricate, install hardware
- Heavy-duty corner block assembly with deep penetration welds; shear blocks welded after assembly
- Glazing: 1/4" monolithic tempered or 1" insulated tempered

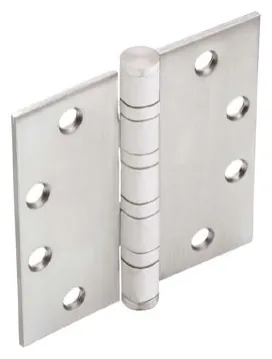

- Hanging options: offset pivot, center hung, butt hinge or continuous hinge

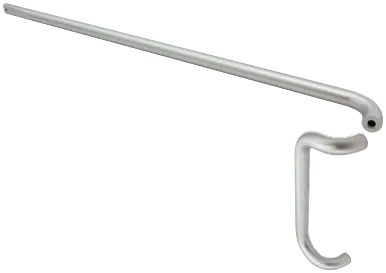

- Standard push/pull: back-to-back push bar, 1" tubular push/pull set, 10" offset pulls
- Thermal, impact and blast resistant entrances available on request
- 3-part architectural guide specification and job-specific shop drawings available
Product lines
- 200 Series narrow stile
- 300 Series medium stile
- 500 Series wide stile
- 300T / 500T thermal strut
- Standard 34 Series offset pivots

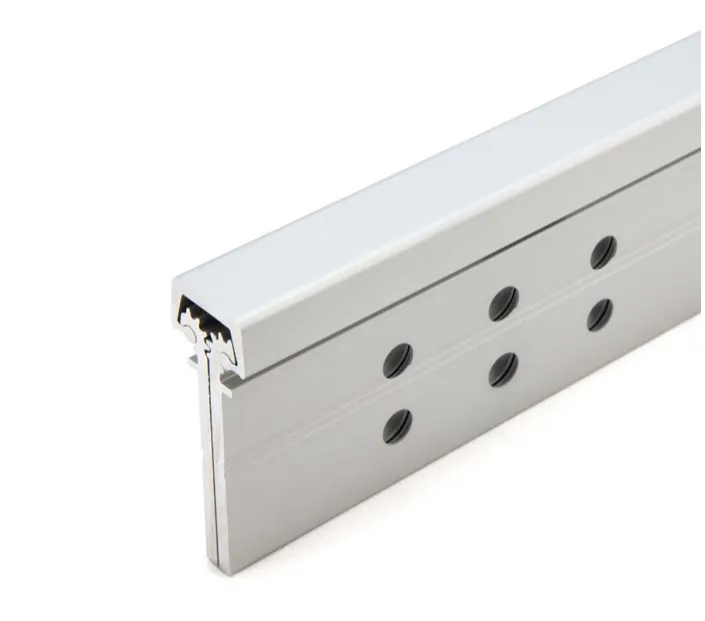

- Continuous hinges
- In-house powder coat center
Available finishes
SASatin Anodized
DUDark Bronze Anodized
KNCustom Kynar Paint
PTCustom Powder Coat
