Specification
JD Glass product catalogs · Aluminum Entrance Doors

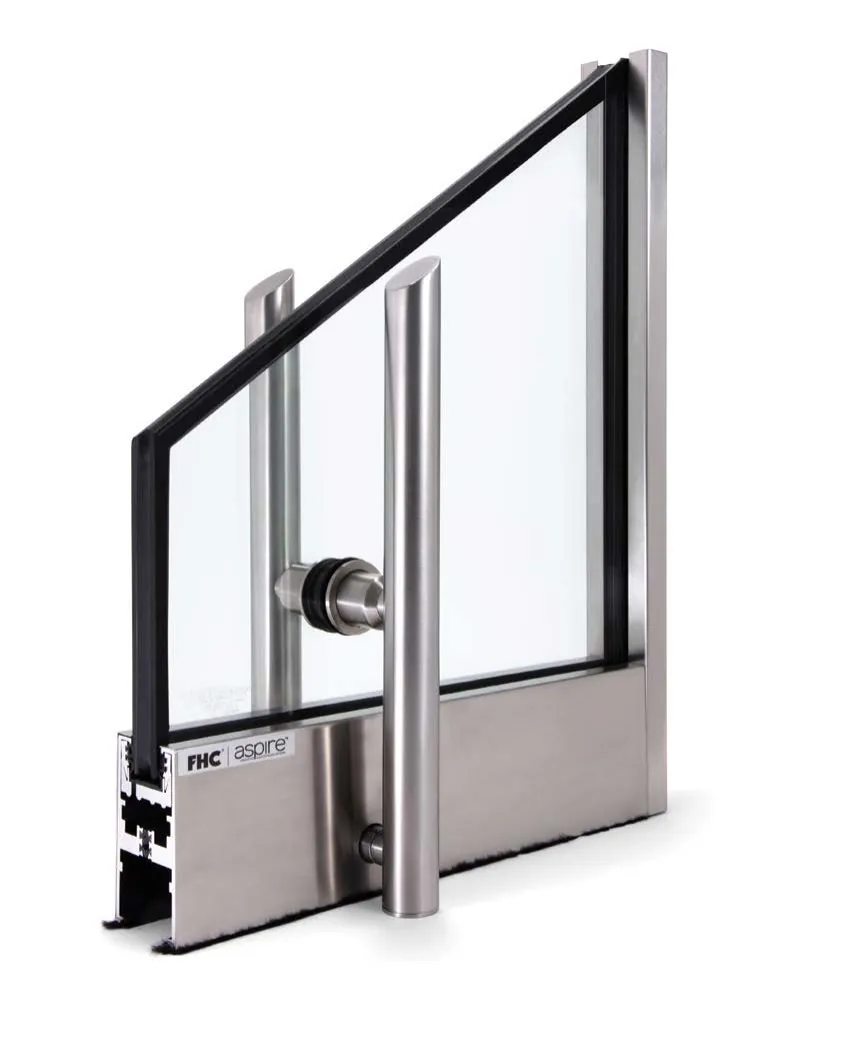

Aspire Insulating Glass Entrance System
- For door openings requiring 1" insulated glass
- Door handle hardware connects directly through the glass with sealed through-glass hole spacers
- Thermally broken rails and very narrow vertical stiles with polyamide strut thermal barriers
- Configurable for center or offset pivot
- Max recommended sizes: 36" × 120" (23 psf), 42" × 111" (25 psf), 48" × 108" (24 psf)
- 4" top rail with 4" or 10" bottom rail and thermally broken threshold
- Stainless steel corner joinery; Pivot Alignment System in top and bottom rails
- Integrated air and water infiltration management
- Designed, engineered and manufactured in the U.S.A.
Product lines

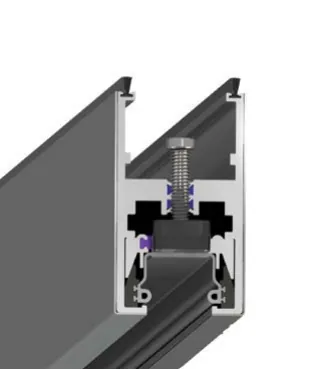

- Aspire 4" top rail with door adjustment screw

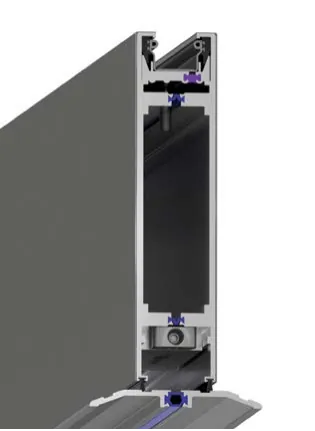

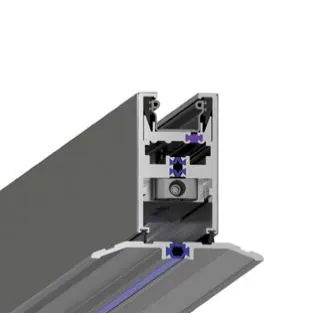

- Aspire 4" and 10" bottom rails

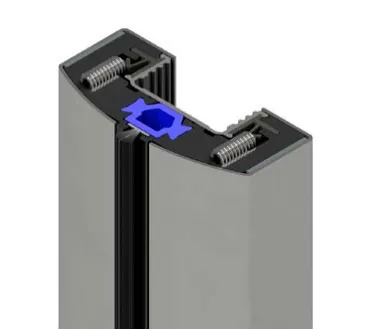

- VDS vertical door stile system
Available finishes
BSBrushed Stainless
PSPolished Stainless
MBMatte Black
ORBOil Rubbed Bronze
SBSatin Brass
PBPolished Brass
PTCustom Powder Coat
