Specification
JD Glass product catalogs · Pivots, Hinges & Overhead Stops
Commercial Door Hinges

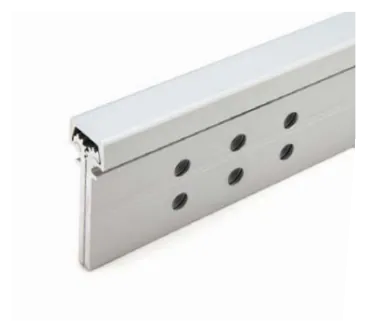

- Heavy-duty continuous hinges: 110 and 220 Series full surface, 330 and 440 Series concealed leaf
- Continuous hinge lengths 83", 95" and 120"; mounting hardware included

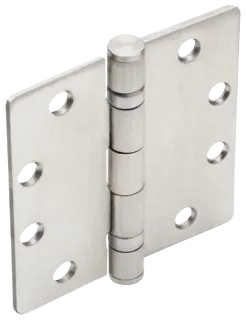

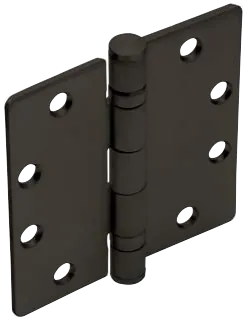

- Standard and heavy weight ball bearing butt hinges in five styles, square or radius corners, non-removable pin
- Sizes include 4-1/2" × 4-1/2", 4-1/2" × 4" and 5" × 4" steel butt hinges

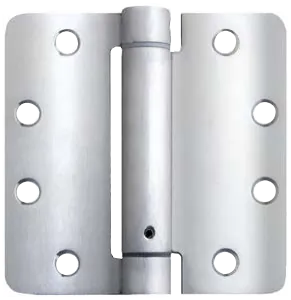

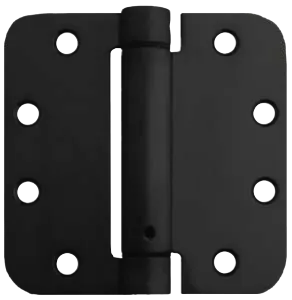

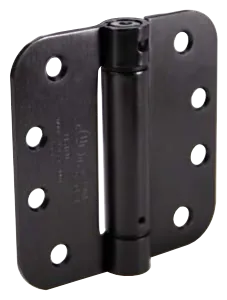

- Heavy-duty spring hinges: self-closing, three styles, chrome, dull nickel or black

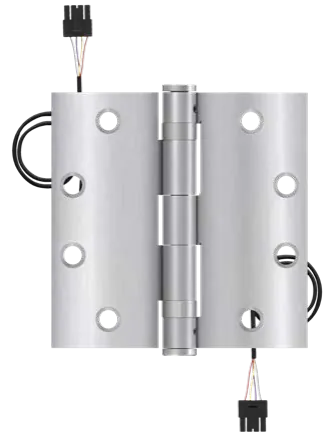

- Electrified 4-wire 4-1/2" × 4-1/2" butt hinge passes power from jamb to door
- Reinforcement backing plates (1 and 1.5 mm), tapped for 12-24 machine screws
Product lines
- 110 / 220 Series full surface continuous
- 330 / 440 Series concealed leaf continuous
- Ball bearing butt hinges
- Spring hinges
- Electrified butt hinge
Available finishes
SASatin Anodized
DUDark Bronze Anodized
CHChrome
DNDull Nickel
BLBlack
