Access Control & Electrified Hardware

Electronic Lock Accessories

Keypads, request-to-exit, power supplies and receivers.

The components that complete an electrified opening: entry keypads, exit switches, power supplies, back-up batteries and door holders.

Manufacturer specification

Key specs at a glance.

Specification

JD Glass product catalogs · Access Control & Electrified Hardware

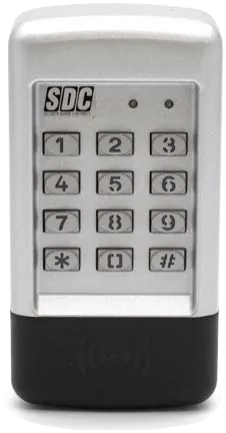

SDC 920 indoor/outdoor keypad: backlit, die-cast housing, up to 500 users with 4–6 digit PINs, 12/24V AC/DC

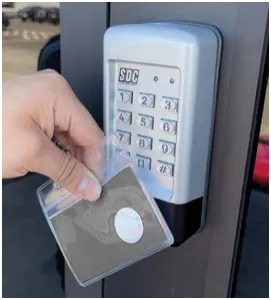

SDC 920 EntryCheck keypad with prox reader, 500 users, tamper lockout; proximity disc tags (10 per pack)
SDC request-to-exit PIR sensor: timer up to 60 seconds, NFPA compliant, fail safe or fail secure

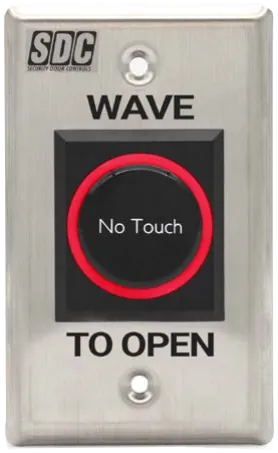

SDC 474 touchless exit switch: senses a hand wave up to 5"

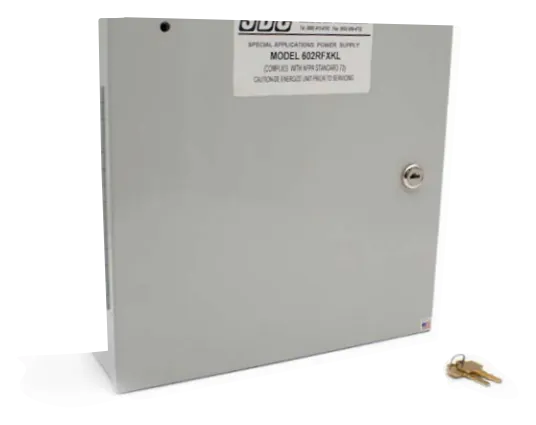

SDC low-voltage power supplies: 1 and 2 amp, field-selectable 12/24 VDC, emergency release input
SDC battery back-up, 12 volt 5 amp

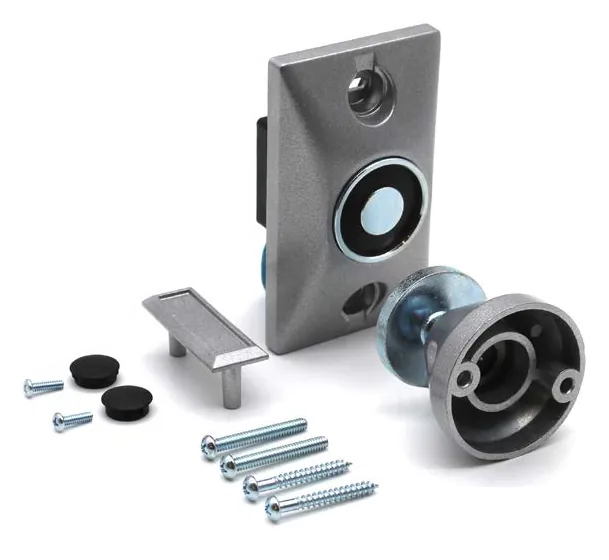

SDC EH Series semi-flush magnetic door holder, holds up to 25 lb

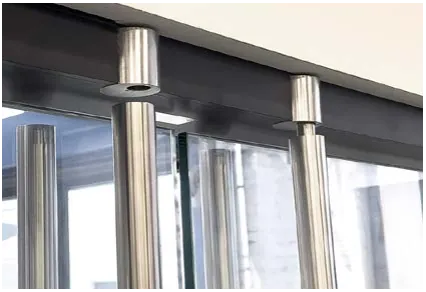

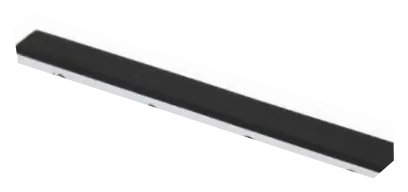

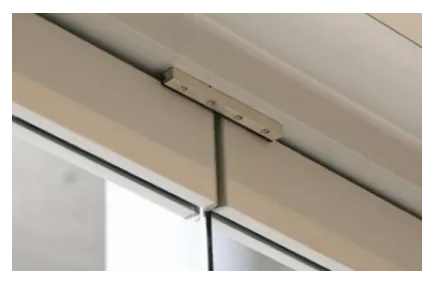

header mount single and double door stops; deadbolt receiver for locking ladder pulls

Specifications from the JD Glass storefront & entrance catalog. Confirm item numbers and availability with JD Glass when you request pricing.
